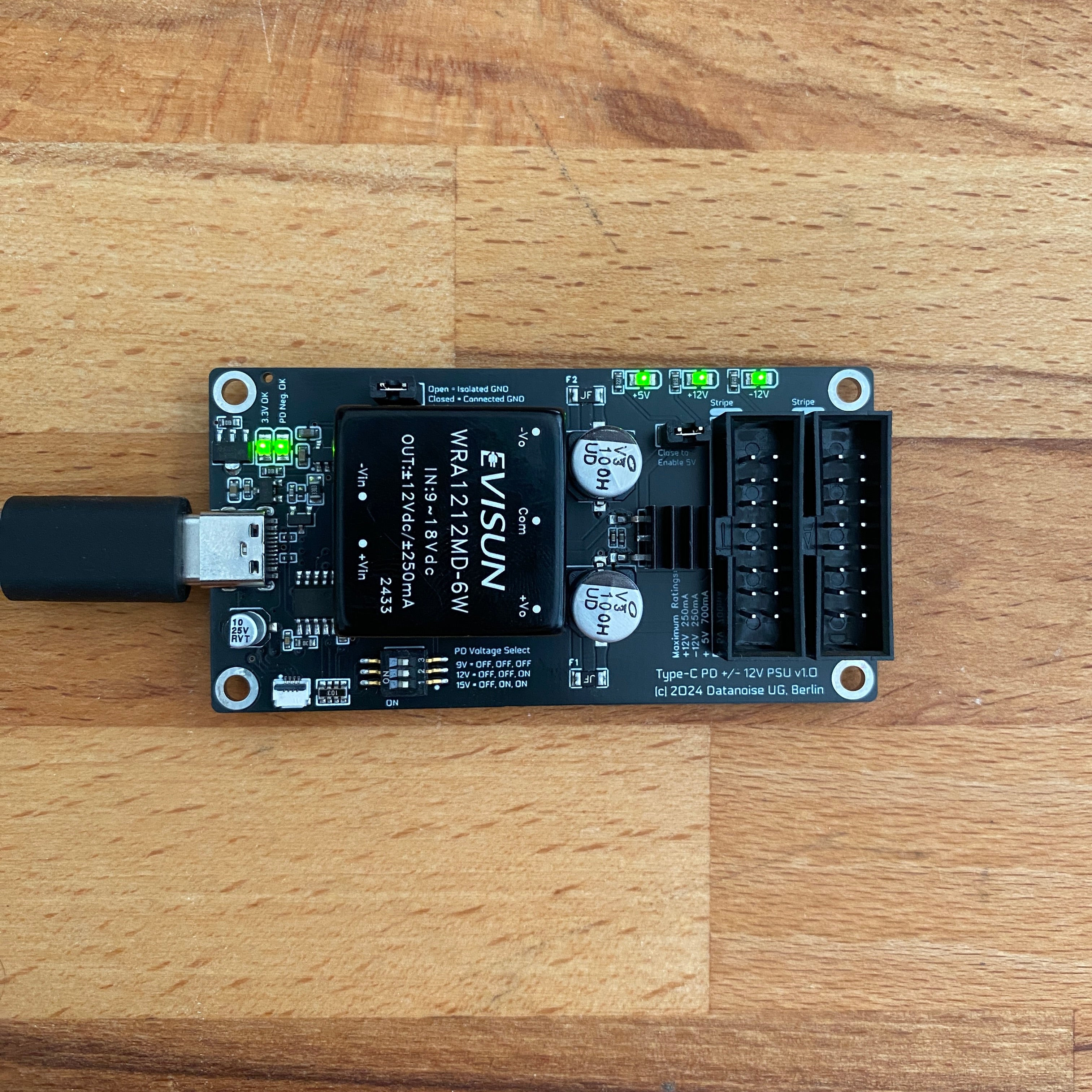

Tepsu - Type-C PD Power Supply (+/- 12V + 5V) for Eurorack and DIY
The Type-C PD Power supply PSU that allows you to power your small Eurorack System or Bench Test System, Breadboards using Type-C Power Delivery.
This board comes fully preassembled.
The specifications are:
Type-C connector
Integrated Circuit for PD Sink management
FIxed 9V PD input - next revision will use the 3-position DIP switch for PD voltage selection (9V, 12V, 15V)
9-18V to +/- 12V DC-DC module with 6W (250mA)
PTC resettable fuses on board
5V regulator for optional 5V
Indicator LEDs for PD status
Indicator LEDs for individual power (+5V, +/-12V)
Jumper to enable/disable 5V
Jumper to change between isolated or unisolated ground
2x 2x8 Pin IDC connector (for connecting 2 modules, or a bus board)
Note that operation at 20V is not supported, due to the DC-DC Module.
Pricing & Availability
Price: €59.00
Status: Currently Unavailable
